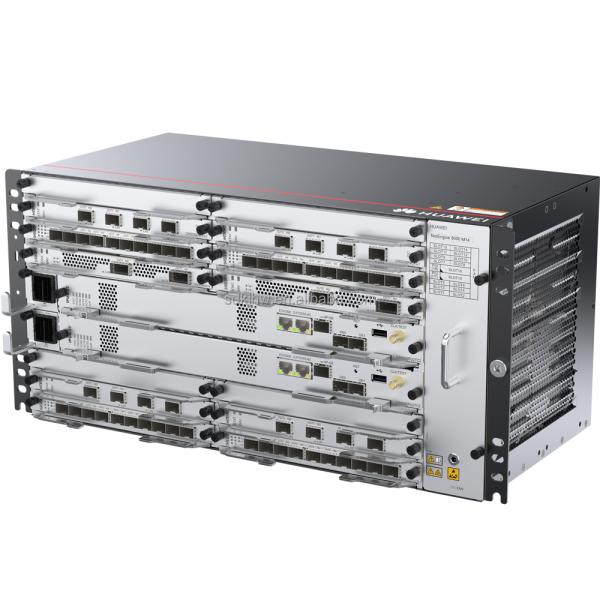

Adding Access VLAN NetEngine 8000 M14 DC Chassis 1 WAN Port 2*DC Power and Fan Box

Ask Lasest Price
Model Number :	NetEngine 8000 M14
Brand Name :	HW
Supply Ability :	1000 Carton/Cartons per Day
Price :	$2,500.00 - $32,000.00/pieces

Add to Cart

Product Details
Company Profile

Adding Access VLAN NetEngine 8000 M14 DC Chassis 1 WAN Port 2*DC Power and Fan Box

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATION

Cabinet installation standards	ETSI 21-inch; IEC 19-inch
Dimensions without packaging (H x W x D) [mm(in.)]	222 mm x 442 mm x 220 mm (8.74 in. x 17.4 in. x 8.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	505 mm x 590 mm x 390 mm (19.88 in. x 23.23 in. x 15.35 in.)
Chassis height [U]	5U
Weight without packaging [kg(lb)]	10.1 kg (22.27 lb)
Weight with packaging [kg(lb)]	21.1 kg (46.52 lb)
Weight without packaging (full configuration) [kg(lb)]	[IPU-2T/IPU-2T-B]DC:28.5kg(62.84 lb) [IPU-1T2/IPU-1T2-B]DC:28.5kg(62.84 lb) [IPU-1T2-A/IPU-1T2-BN]DC:25.6kg(56.44 lb)
Weight with packaging (full configuration) [kg(lb)]	[IPU-2T/IPU-2T-B]DC:39.5kg(87.08 lb) [IPU-1T2/IPU-1T2-B]DC:39.5kg(87.08 lb) [IPU-1T2-A/IPU-1T2-BN]DC:36.6kg(80.69lb)
Typical power consumption (with configuration) [W]	[IPU-2T/IPU-2T-B]DC: 1fan+2DC power+2IPU+2CR5DE2NE4X14+1CR5D00E8XM25+3CR5D00LAXF91+1CR5D00EAGF95=905.6 W [IPU-1T2/IPU-1T2-B]DC:1fan+2DC power+2IPU+2CR5DE2NE4X14+3CR5D00LAXF91+2CR5D00EAGF95=875.15 W [IPU-1T2-A/IPU-1T2-BN]DC:1fan+2DC power+2IPU+2CR5D0E5XMF94+2CR5D00LAXF91+2*CR5D00EAGF70=454.12 W
Typical heat dissipation (with configuration) [BTU/hour]	[IPU-2T/IPU-2T-B]DC: 1fan+2DC power+2IPU+2CR5DE2NE4X14+1CR5D00E8XM25+3CR5D00LAXF91+1CR5D00EAGF95=2859.5 BTU/hour [IPU-1T2/IPU-1T2-B]DC:1fan+2DC power+2IPU+2CR5DE2NE4X14+3CR5D00LAXF91+2CR5D00EAGF95=2761.75 BTU/hour [IPU-1T2-A/IPU-1T2-BN]DC:1fan+2DC power+2IPU+2CR5D0E5XMF94+2CR5D00LAXF91+2*CR5D00EAGF70=933.94 BTU/hour
MTBF [year]	147.1 year
MTTR [hour]	0.5 hour
Availability	0.999999612
Power supply mode	DC
Rated input voltage [V]	–48 V/–60 V
Input voltage range [V]	–40 V to –72 V
Maximum input current [A]	60 A
Rated output power [W]	2400 W
Maximum input cable size [mm²]	16mm^2, 10mm^2 (0-14meters) recommended, 16mm^2 (15-23meters) recommended
Front-end circuit breaker/fuse [A]	≥63 A
Heat dissipation mode	Air cooling
Airflow direction	From left to right
Noise at normal temperature (acoustic power) [dB(A)]	< 72 dB (meeting the ETSI 72 dBA standard)
Number of slots	19
Number of service board slots	14
Switching capacity	IPU-2T/IPU-2T-B:4 Tbit/s IPU-1T2/IPU-1T2-B:2.4 Tbit/s IPU-1T2-A/IPU-1T2-BN:2.4 Tbit/s
Maximum number of physical ports on the entire device	280
Maximum number of 100GE ports	IPU-2T/IPU-2T-B:20 IPU-1T2/IPU-1T2-B:12 IPU-1T2-A/IPU-1T2-BN:12
Maximum number of 50GE ports	IPU-2T/IPU-2T-B:28 IPU-1T2/IPU-1T2-B:24 IPU-1T2-A/IPU-1T2-BN:20
Maximum number of 40GE ports	IPU-2T/IPU-2T-B:20 IPU-1T2/IPU-1T2-B:12 IPU-1T2-A/IPU-1T2-BN:12
Maximum number of 25GE ports	IPU-2T/IPU-2T-B:80 IPU-1T2/IPU-1T2-B:48 IPU-1T2-A/IPU-1T2-BN:40
Maximum number of 10GE ports	IPU-2T/IPU-2T-B:140 IPU-1T2/IPU-1T2-B:120 IPU-1T2-A/IPU-1T2-BN:100
Maximum number of GE ports	IPU-2T/IPU-2T-B:280 IPU-1T2/IPU-1T2-B:280 IPU-1T2-A/IPU-1T2-BN:240
Maximum number of FE ports	IPU-2T/IPU-2T-B:280 IPU-1T2/IPU-1T2-B:280 IPU-1T2-A/IPU-1T2-BN:240
Maximum number of electrical ports	IPU-2T/IPU-2T-B:140 IPU-1T2/IPU-1T2-B:140 IPU-1T2-A/IPU-1T2-BN:140
Redundant IPUs	1:1
Redundant power supply	1+1
Redundant fans	3+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F)(one fan module contains four fans)
Long-term operating temperature [°C(°F)]	–20°C to +55°C (–4°F to +131°F), start: ≥ –5°C (23°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (54°F/hour)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	< 5000 m (16404.20 ft.)
