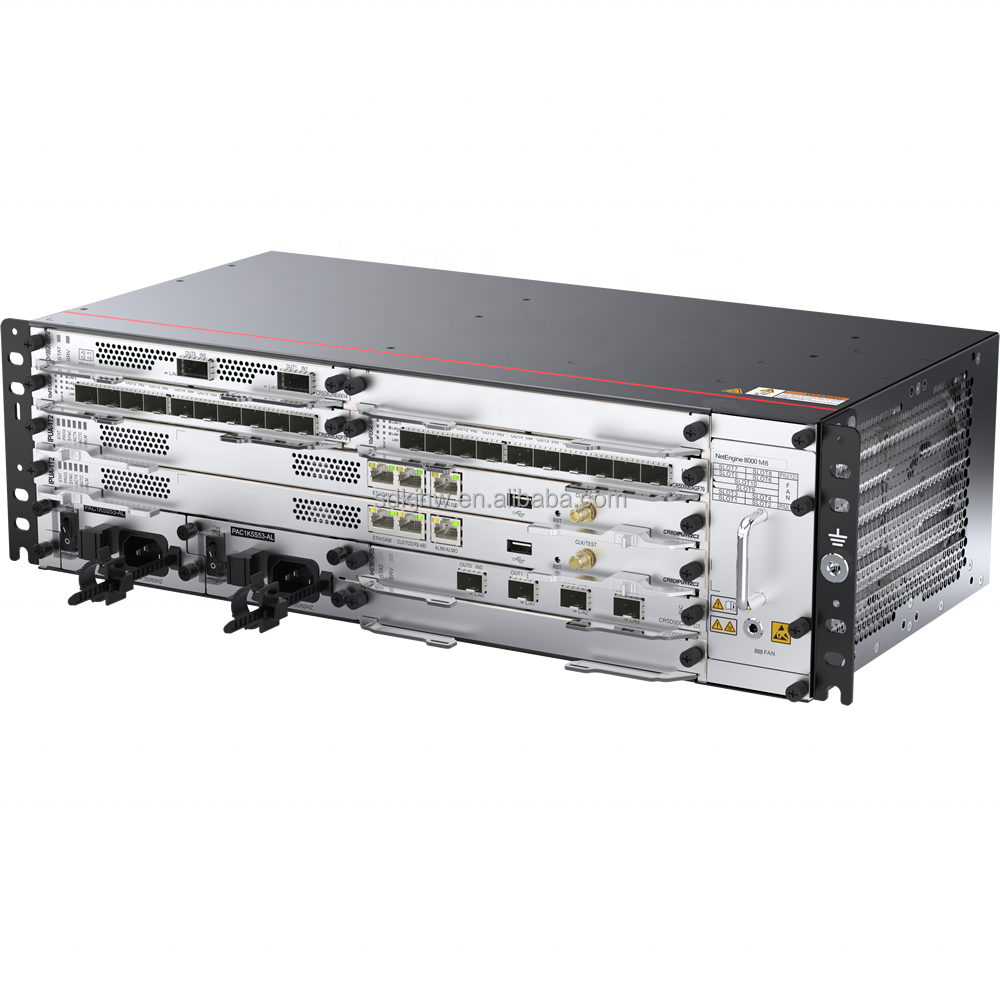

NetEngine 8000 M8 Integrated AC Chassis 11.3 kg 24.91 lb Fully Configured and Stocked

Ask Lasest Price
Model Number :	NetEngine 8000 M8
Brand Name :	HW
Supply Ability :	1000 Carton/Cartons per Day
Price :	$2,800.00 - $28,500.00/pieces

Add to Cart

Product Details
Company Profile

NetEngine 8000 M8 Integrated AC Chassis 11.3 kg 24.91 lb Fully Configured and Stocked

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATION

Basic Information
Part Number	02353EWU
Model	CR8BM8BKPAC1
Description	NetEngine 8000 M8 Integrated AC Chassis Components (Including 2*AC Power,Fan Box)
First supported version	V800R012C00
Technical Specifications
Height [mm]	132.6 mm
Depth [mm]	220 mm
Wide [mm]	442 mm
Chassis height [U]	3 U
Weight with packaging (full configuration) [kg(lb)]	[IPU-1T2/IPU-1T2-B]AC:20.6kg(45.42 lb) [IPU-480/IPU-480-B/IPU-480-BN]AC:20.6kg(45.42 lb)
Weight with packaging [kg(lb)]	11.3 kg (24.91 lb)
Weight without packaging (full configuration) [kg(lb)]	[IPU-1T2/IPU-1T2-B]AC:17.1kg(37.71 lb) [IPU-480/IPU-480-B/IPU-480-BN]AC:17.1kg(37.71 lb)
Weight without packaging [kg(lb)]	7.8 kg (17.2 lb)
Typical power consumption (with configuration) [W]	[IPU-1T2/IPU-1T2-B]AC: 2IPU+1fan+2AC power+2CR5D0E5XMF94+1CR5D00E4XM25+2CR5D00LAXF91+1CR5D00EAGF95=485.27 W [IPU-480/IPU-480-B/IPU-480-BN]AC: 2IPU+1fan+2AC power+2CR5D0E5XMF94+2CR5D00LAXF91+2*CR5D00EAGF95=457.79 W
Heat dissipation mode	Air cooling
Typical heat dissipation (with configuration) [BTU/hour]	[IPU-1T2/IPU-1T2-B]AC: 2IPU+1fan+2AC power+2CR5D0E5XMF94+1CR5D00E4XM25+2CR5D00LAXF91+1CR5D00EAGF95=1532.91 BTU/hour [IPU-480/IPU-480-B/IPU-480-BN]AC: 2IPU+1fan+2AC power+2CR5D0E5XMF94+2CR5D00LAXF91+2*CR5D00EAGF95=1443.77 BTU/hour
Power supply mode	AC
Input voltage range [V]	90 V to 290 V
Rated input voltage [V]	200V to 240V/100V to 127V dual live wires, support 240V HVDC
Maximum input current [A]	10 A
Rated output power [W]	1500 W
Number of service board slots	6
Number of slots	11
Switching capacity [bps,bit/s]	IPU-1T2/IPU-1T2-B:2.4 Tbit/s IPU-480/IPU-480-B/IPU-480-BN:960 Gbit/s
Redundant IPUs	1:1
Redundant fans	1+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C(104°F) (one fan module contains two fans)
Redundant power supply	1+1
Noise at normal temperature (acoustic power) [dB(A)]	< 72 dB (meeting the ETSI 72 dBA standard)
Airflow direction	From left to right
Maximum input cable size	Standard C13 cable
Front-end circuit breaker/fuse	≥10 A
Restriction on the operating temperature variation rate [°C(°F)]	≤ 0.5°C/min (32.9°F/min), non-condensing
Long-term operating temperature [°C(°F)]	-20°C to 55°C(-4°F to 131°F)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	< 5000 m (16404.20 ft.)
MTBF [year]	112.71
MTTR [hour]	0.5 hour
Availability	0.999999494
Maximum number of 25GE ports	IPU-1T2/IPU-1T2-B:24 IPU-480/IPU-480-B/IPU-480-BN:16 IPU-240/IPUA-240-B:8
Maximum number of GE ports	IPU-1T2/IPU-1T2-B:120 IPU-480/IPU-480-B/IPU-480-BN:120 IPU-240/IPU-240-B:120
Maximum number of electrical ports	IPU-1T2/IPU-1T2-B:60 IPU-480/IPU-480-B/IPU-480-BN:60 IPU-240/IPU-240-B:60
Maximum number of 100GE ports	IPU-1T2/IPU-1T2-B:9 IPU-480/IPU-480-B/IPU-480-BN:4 IPU-240/IPU-240-B:2
Maximum number of 40GE ports	IPU-1T2/IPU-1T2-B:9 IPU-480/IPU-480-B/IPU-480-BN:4 IPU-240/IPU-240-B:2
Maximum number of 10GE ports	IPU-1T2/IPU-1T2-B:60 IPU-480/IPU-480-B/IPU-480-BN:48 IPU-240/IPU-240-B:24
Maximum number of FE ports	IPU-1T2/IPU-1T2-B:120 IPU-480/IPU-480-B/IPU-480-BN:120 IPU-240/IPU-240-B:120
Maximum number of physical ports on the entire device	120
Maximum number of 50GE ports	IPU-1T2/IPU-1T2-B:12 IPU-480/IPU-480-B/IPU-480-BN:8
