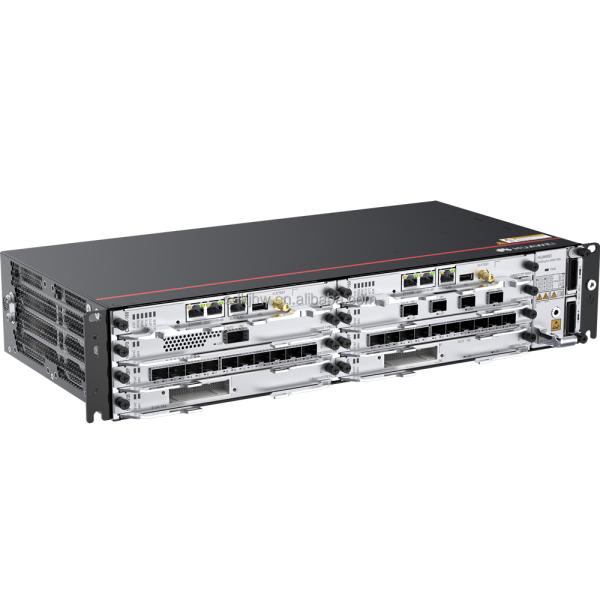

Fully Configured NetEngine 8000 M4 DC Chassis 9.9 kg 21.78 lb with DC Power and Fan Box

Ask Lasest Price
Model Number :	NetEngine 8000 M4
Brand Name :	HW
Supply Ability :	1000 Carton/Cartons per Day
Price :	$2,500.00 - $32,000.00/pieces

Add to Cart

Product Details
Company Profile

Fully Configured NetEngine 8000 M4 DC Chassis 9.9 kg 21.78 lb with DC Power and Fan Box

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATION

Cabinet installation standards	ETSI (21-inch); IEC (19-inch)
Dimensions without packaging (H x W x D) [mm(in.)]	88.9 mm x 442 mm x 220 mm (3.5 in. x 17.4 in. x 8.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	335 mm x 585 mm x 390 mm (13.19 in. x 23.03 in. x 15.35 in.)
Chassis height [U]	2 U
Weight without packaging [kg(lb)]	7.2 kg (15.87 lb)
Weight with packaging [kg(lb)]	9.9 kg (21.78 lb)
Weight without packaging (full configuration) [kg(lb)]	10.4 kg
Weight with packaging (full configuration) [kg(lb)]	13.1 kg
Typical power consumption (with configuration) [W]	283.4 W
Typical heat dissipation (with configuration) [BTU/hour]	919.47 BTU/hour
MTBF [year]	33.40 year
MTTR [hour]	0.5 hour
Availability	0.999998291
CPU	16-core, 2.0 GHz
SDRAM	16GB
Flash memory	64MB
Storage	16 GB
Power supply mode	DC
Rated input voltage [V]	–48 V/–60 V
Input voltage range [V]	–40 V to –72 V
Maximum input current [A]	30 A
Rated output power [W]	1200 W
Maximum input cable size [mm²]	4 mm^2 (0–14 m)
Front-end circuit breaker/fuse [A]	≥ 16 A (Based on long-term evolution requirements and site conditions, the recommended current is greater than or equal to 32 A.)
Heat dissipation mode	Air cooling
Airflow direction	From left to right
Noise at normal temperature (acoustic power) [dB(A)]	< 65 dB(A)
Number of slots	8
Number of service board slots	6
Switching capacity	2.4 Tbit/s (Bidirectional)
Maximum number of physical ports on the entire device	116
Maximum number of 100GE ports	12
Maximum number of 50GE ports	12
Maximum number of 40GE ports	12
Maximum number of 25GE ports	64
Maximum number of 10GE ports	72
Maximum number of GE ports	96
Maximum number of FE ports	96
Maximum number of electrical ports	96
Redundant power supply	1+1
Redundant fans	1+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F) (one fan module contains two fans)
Long-term operating temperature [°C(°F)]	-20°C to 60°C(-4.0°F to 140.0°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (54°F/hour)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	< 5000 m (16404.20 ft.)
