CE6820-48s6cq-F 40ge/100ge Uplink Ports AC Power Data Center Core Switches 2.16tbit/S

Ask Lasest Price
Model Number :	CE6820-48s6cq-F
Brand Name :	HW
Price :	$2,100.00/units 2-49 units

Add to Cart

Product Details
Company Profile

CE6820-48s6cq-F 40ge/100ge Uplink Ports AC Power Data Center Core Switches 2.16tbit/S

PRODUCT DESCRIPTION

HW CloudEngine 6820 series Switch

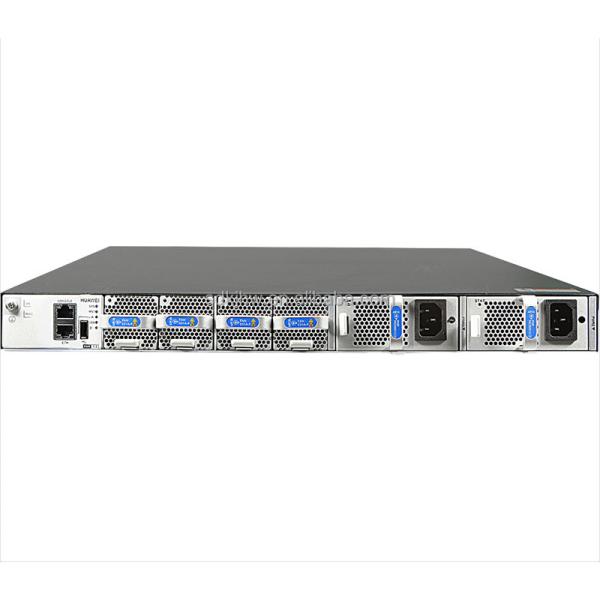

CE6820-48S6CQ-F switch

(48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust)

Hua -wei CloudEngine 6820 series switches are next-generation 10GE access switches that provide high performance and high port density on data center networks and high-end campus networks. The CloudEngine 6820 series have advanced hardware architecture with 40GE/100GE uplink ports and high-density 10GE access ports. Using Hua wei's VRP8 software platform, CloudEngine 6820 series switches support extensive data center features and high stacking capabilities. In addition, the CloudEngine 6820 series use a flexible airflow design (front-to-back or back-to-front).

CloudEngine 6820 series can work with CloudEngine 16800 or CloudEngine 12800 series data center core switches to build elastic, virtual, and high-quality 40GE/100GE full-mesh networks, meeting requirements of cloud computing data centers.

CloudEngine 6820 series provide high-density 10GE access to help enterprises and carriers build a scalable data center
network platform in the cloud computing era. They can also work as core or aggregation switches on campus networks.

CE6820-48s6cq-F 40ge/100ge Uplink Ports AC Power Data Center Core Switches 2.16tbit/S

Networking Application

Data Center Applications

On a typical data center network, CloudEngine 6820 switches work as TOR switches and connect to CloudEngine 16800, CloudEngine 12800 or CloudEngine 8800 core switches using 40GE/100GE ports, building an end-to-end 40GE/100GE fullmesh network.

Note: VXLAN can also be used on campus networks to support flexible service deployment in different service areas.

TECHNICAL SPECIFICATION

1.Hardware Specifications

Item				CloudEngine 6820-48S6CQ
Physical features	Dimensions (W × D × H)		442 mm x 420 mm x 43.6 mm
		Weight (excluding optical transceivers, power modules, and fan assemblies/ including AC power modules and fan assemblies, excluding optical transceivers, kg)		5.6/7.7
		Switching capacity (Tbit/s)		2.16
		Forwarding performance (Mpps)		470
10GE SFP+ ports				48
40/100GE QSFP28 ports				6
Management interface	Out-of-band management port		1 x GE management interface
		Console port		1 x RJ45 interface
		USB port		1
CPU	Main frequency (GHz)		1.4
		Number of cores		4
Storage	RAM		4 GB
		NOR flash		64 MB
		NAND flash		4 GB
System	System buffer		21 MB
Power supply	Power modules		600W AC 1000W -48V DC 1200W 380V HVDC
		Rated voltage range (V)		AC: 100V to 240V DC: -48V to -60V HVDC: 240V to 380V
		Maximum voltage range (V)		AC: 90V to 290V DC: -38.4V to -72V HVDC: 190V to 400V
		Maximum input current		AC 600W: 100V to 240V 8 A 1000W -48V DC: -48 to 60V 30A 1200W 380V HVDC: 190V 8A
		Typical power		162 W (100% traffic load, copper cable, normal temperature, dual power modules) 196 W (100% traffic load, short-distance optical transceivers, normal temperature, dual power modules)
		Maximum power		282 W
		Frequency (AC, Hz)		50/60
Heat dissipation	Heat dissipation mode		Air cooling
		Number of fan trays		4
		Heat dissipation airflow		Front-to-back or back-to-front
		Maximum heat consumption (BTU/hour)		962
Environment specifications	Long-term operating temperature (°C)		0°C to 40°C (0-1800 m) The temperature decreases by 1°C each time the altitude increases by 220 m.
		Storage temperature (°C)		-40°C to +70°C
		Relative humidity		5% to 95%
		Operating altitude (m)		Up to 5000
		Sound power at 27°C (dBA)		Front-to-back airflow: < 64 Back-to-front airflow: <65
		Sound power at 40°C (dBA)		Front-to-back airflow: < 84 Back-to-front airflow: < 85
		Sound pressure at 27°C (dBA)		Front-to-back airflow: 50 on average (maximum: 55) Back-to-front airflow: 51 on average (maximum: 56)
		Surge protection		AC power supply protection: 6 kV in common mode and 6 kV in differential mode DC power supply protection: 4 kV in common mode and 2 kV in differential mode
Reliability	MTBF (year)		45.48
		MTTR (hour)		1.52
		Availability		0.99999618

2.Performance and Scalability

Item	Value
Maximum number of MAC address entries	256K
Maximum number of routes (FIB IPv4/IPv6)	256K/80K
ARP size	256K
Maximum number of VRFs	4096
IPv6 ND table size	80K
Maximum number of multicast routes (multicast FIB IPv4/IPv6)	32K/2K
Maximum number of VRRP groups	1024
Maximum number of ECMP paths	128
Maximum number of LAGs	1024
Maximum number of links in a LAG	128
Maximum number of MSTIs	64
Maximum number of VLANs where VBST can be configured	500

3.Ordering Information

Mainframe
CE6820-48S6CQ	CE6820-48S6CQ switch (4810G SFP+, 6100G QSFP28, without fan and power modules)
CE6820-48S6CQ-B	CE6820-48S6CQ-B switch (4810G SFP+, 6100G QSFP28, 2AC power modules, 4fan modules, port-side intake)
CE6820-48S6CQ-F	CE6820-48S6CQ-F switch (4810G SFP+, 6100G QSFP28, 2AC power modules, 4fan modules, port-side exhaust)
Fan Tray
Model	Description	Applicable Product
FAN-031A-F	Fan box (F,FAN panel side intake)	CE6820-48S6CQ
FAN-031A-B	Fan box (B,FAN panel side exhaust)	CE6820-48S6CQ
Power
Model	Description		Applicable Product
PAC600S12-CF	600W AC Power Module(Front to Back, Power panel side intake)		CE6820-48S6CQ
PAC600S12-CB	600W AC Power Module(Back to Front, Power panel side exhaust)		CE6820-48S6CQ
PDC1000S12-DF	1000W DC Power Module (Front to Back, Power panel side intake)		CE6820-48S6CQ
PDC1000S12-DB	1000W DC Power Module (Front to Back, Power panel side exhaust)		CE6820-48S6CQ
PHD1K2S12-DB	1200W HVDC Power Module (Back to Front, Power panel side exhaust)		CE6820-48S6CQ
Software
N1-CE68LIC-BS-L	N1-CloudEngine 6800 Basic Software Function
N1-CE68BSL-SnS1Y	N1-CloudEngine 6800 Basic Software Function -SnS-1 Year
N1-CE68LIC-CFFD	N1-CloudFabric Foundation SW License for CloudEngine 6800
N1-CE68CFFD-SnS1Y	N1-CloudFabric Foundation SW License for CloudEngine 6800-SnS-1 Year

COMPANY PROFILE

Why Choose Us

Exhibition

Certifications

Client Evaluation

Packing & Delivery

1. Who are we?
We are based in Beijing, China, start from 2023,sell to Domestic Market(60.00%),North America(20.00%),South America(10.00%),Western Europe(10.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Microwave Equipment, Data Communication Equipment, Transmission Equipment, Storage Device, Server

4. Why should you buy from us not from other suppliers?
Microwave equipment:RTN910A/RTN905F/RTN950/RTN950A/RTN980/RTN980L/RTN320F/RTN380AX; Wavelength division equipment:OSN9800/OSN9600/ONS8800; OLT:MA5800X2/X7; Switch:S9310X/CE6881-48S6CQ-B/CE8851-32CQ8DQ-P/CE6863E-48S6CQ. OceanStor Dorado 6000 V6/2288H V6/5288V6

5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
